Gravity wave sensor

The gravity wave sensor is a high-precision sensor independently developed by Guangzhou Ruihai Ocean Technology Co., Ltd., which calculates wave height, direction, period and other data through inertial navigation components. This device uses the periodogram method to calculate wave power spectrum, and is a wave sensor that completes online calculation of wave power spectrum. It also calculates wave characteristic parameters based on wave spectrum theory. Not only that, it also achieves high-precision and high-frequency mathematical attitude compensation for the first time internationally, replacing traditional mechanical/electrical horizontal holding structures, making the sensor smaller in size and lower in power consumption.

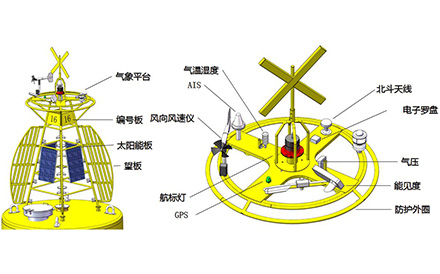

Gravity wave sensors are suitable for wave buoys, unmanned boats, underwater gliders, etc.

Product features:

❊ Online calculation of wave power spectrum and directional spectrum

❊ Smaller volume

High measurement accuracy

❊ Using multiple algorithms for fusion, high reliability

Strong self adaptability

Parameter Description

Wave spectrum parameters

Wave height: 0~30 m

Resolution: 0.01 m

Accuracy:+2%

Wave period: 1.5~25s

Resolution: 0.01 s

Accuracy: Soil 2%

[Direction spectrum parameters]

Wave direction: 0-359 °

Resolution: 1 °

Accuracy:+5%

[Other parameters]

Sampling frequency: 4Hz

Size: 106mm * 90mm * 44mm

Overall power consumption:< 0.8w@4Hz
