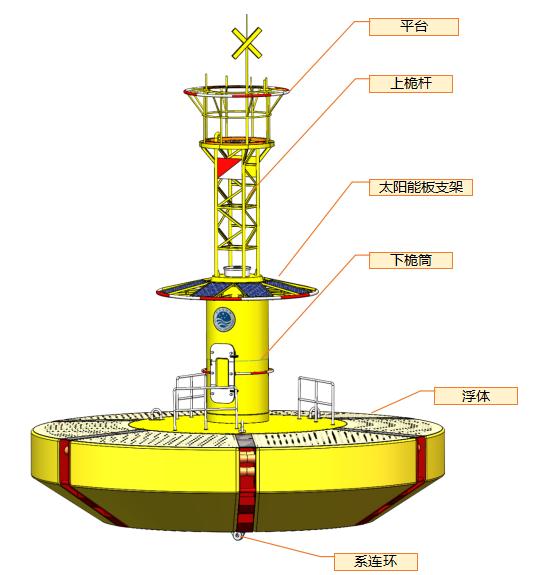

10 meter modular buoy

Main parameters:

Diameter: 10 meters

Model height: 2.2 meters

Bottom plate diameter: 5.4 meters

Height from bottom plate to platform:>10 meters

Weight: 30 tons

10米新型浮标

There are three innovations in the comparison between the new 10 meter ocean buoy and the old buoy:

1. Modular components

Modular assembly of components for easy maintenance and replacement.

The buoy is disassembled into components for transportation, which is not limited by the volume of the buoy and reduces transportation costs.

Dock assembly, bolt connection, previously one month on-site installation time, now reduced to one week, saving labor time and costs.

2. Lightweight and lightweight

The overall weight has been reduced by 40%, improving the efficiency of offshore operations and greatly saving ship costs.

Suitable for buoy specific work vessels and 100-300t fishing boats for offshore operations.

3. Materials evolve first

Durable to impact and corrosion, with a longer lifespan and easy maintenance.

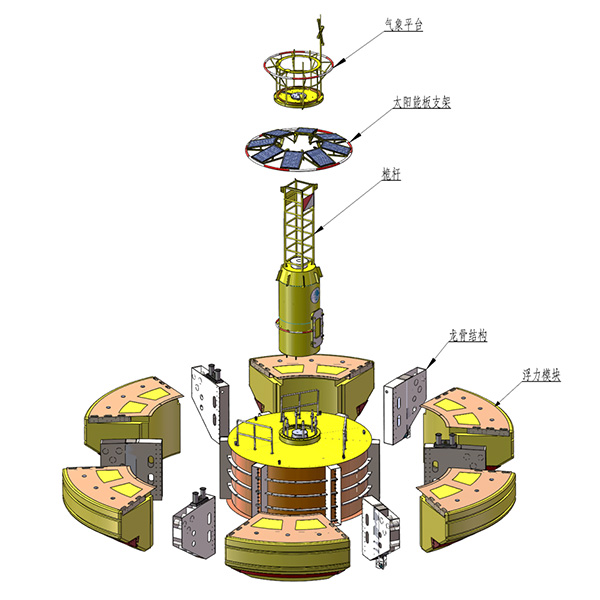

Exploded exploded view of a new 10 meter buoy

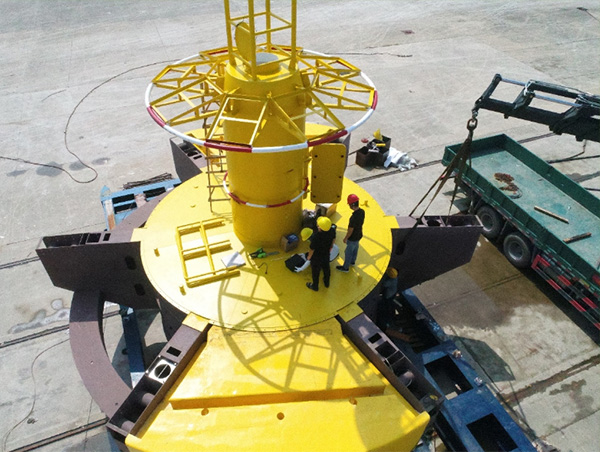

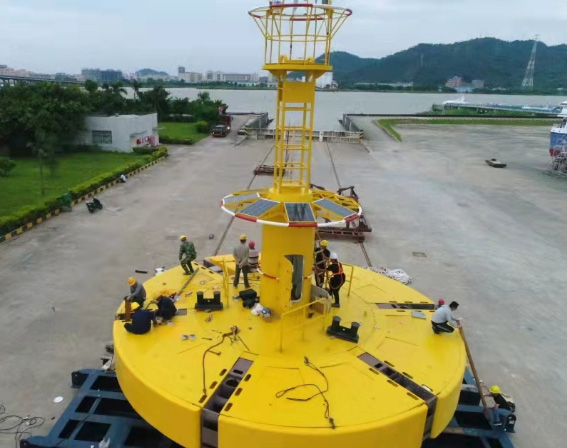

Assembly of 10 meter modular buoys

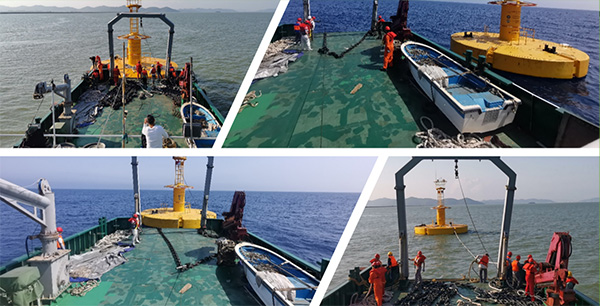

10 meter modular buoy deployment

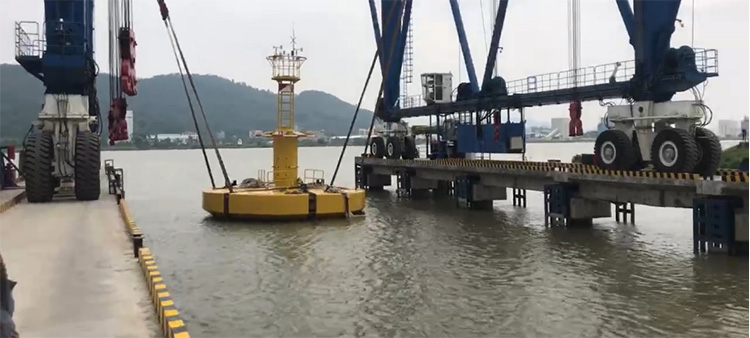

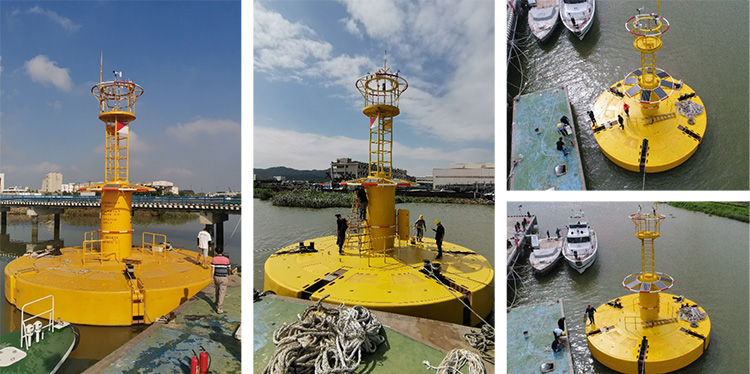

Mooring of 10 meter modular buoy dock

10 meter modular buoy lifting
