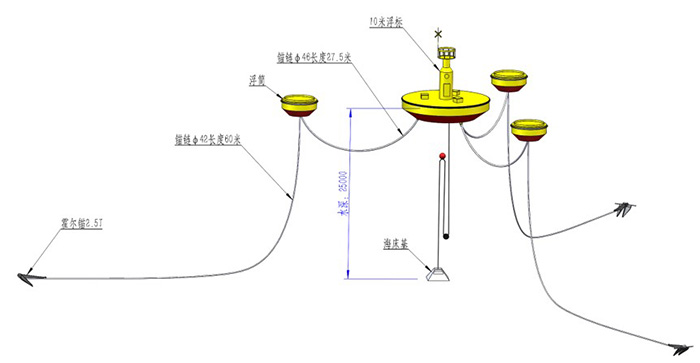

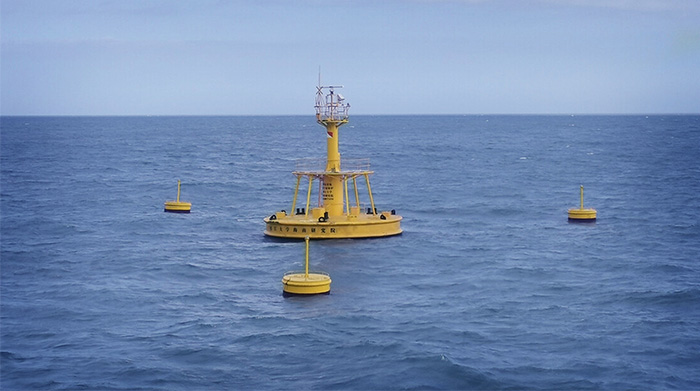

The three anchor buoy system consists of two parts: a water surface buoy system and a three anchor mooring system: a ten meter buoy as the main body, equipped with sensors, signal acquisition and processing devices, communication devices, and power supply systems; The positioning anchor system at sea is completed by the mooring subsystem, and the underwater mooring subsystem provides assurance for the offshore positioning of surface buoys. The ten meter buoy itself is not directly connected to its three sets of anchor systems. The three main anchor systems are respectively attached to three water surface buoys similar to water drums. These three buoys are centered around the expected placement position of the water surface buoy, and are evenly distributed around the buoy at 120 °, maintaining a certain distance from the buoy.
1. Accurately limit the buoy to an effective working area.
2. Realize stable acquisition of long-term, continuous, fixed-point, and real-time data of water body profiles within a certain water depth range, and ensure the safety of observation facilities.
3. The combination of anchor system and protective floating drum is used to form a three anchor mooring system, which enhances the ability to resist harsh sea conditions and greatly improves the safety and reliability of mooring buoys, avoiding entanglement and breakage of underwater anchor chains.
4. The three anchor system is uniformly distributed at 120 °, and by protecting the buoyancy of the floating drum, it tightens the main buoy body, greatly limiting its rotational freedom and making it highly stable.
5. The main buoy has high stability and reliability, reducing the rotation and sway angles of the buoy, thereby improving the data accuracy of the observation system. At the same time, the posture of the communication equipment is maintained well, greatly improving the accuracy of data transmission.
